Stepper Motors

Stepper Motors

NEMA17 20mm

×4 $7.72

Required Modifications

  1. Cut motor wires

    Cut the motor wires to the lengths 15cm, 15cm, 10cm, 23cm.

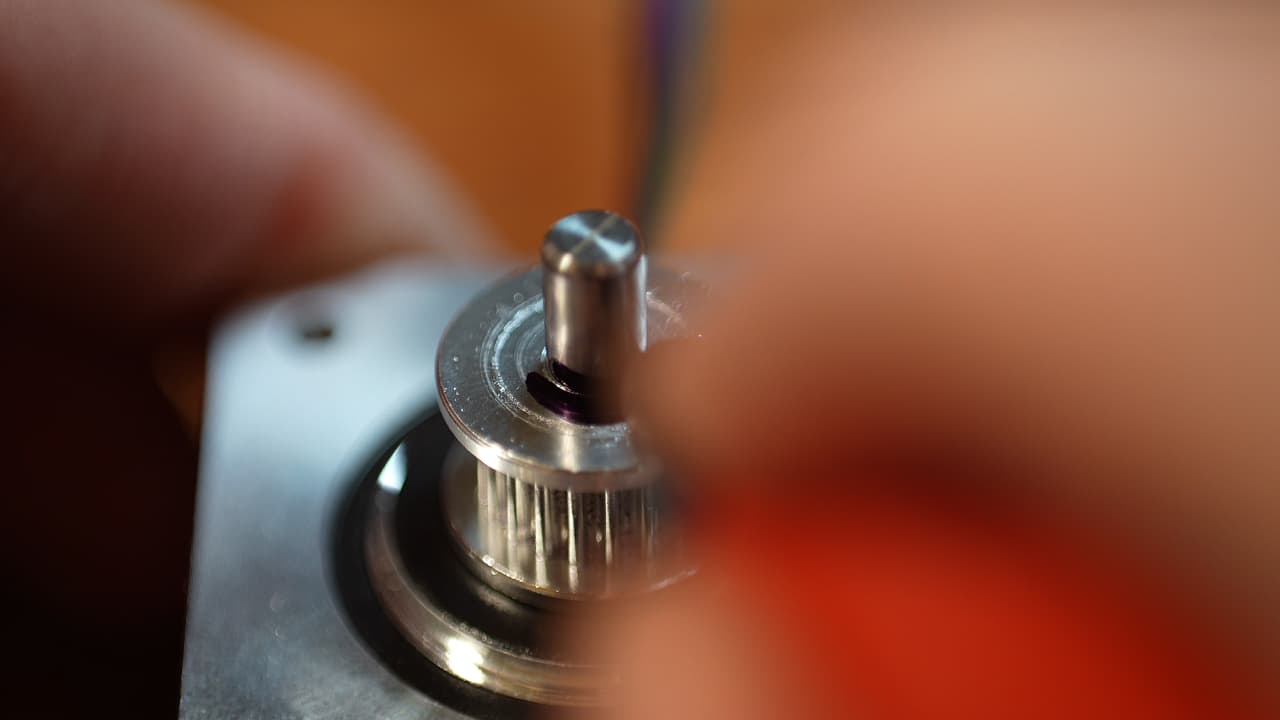

  2. Mark shaft

    Drop on one of the 10mm thick pulleys and mark the shaft.

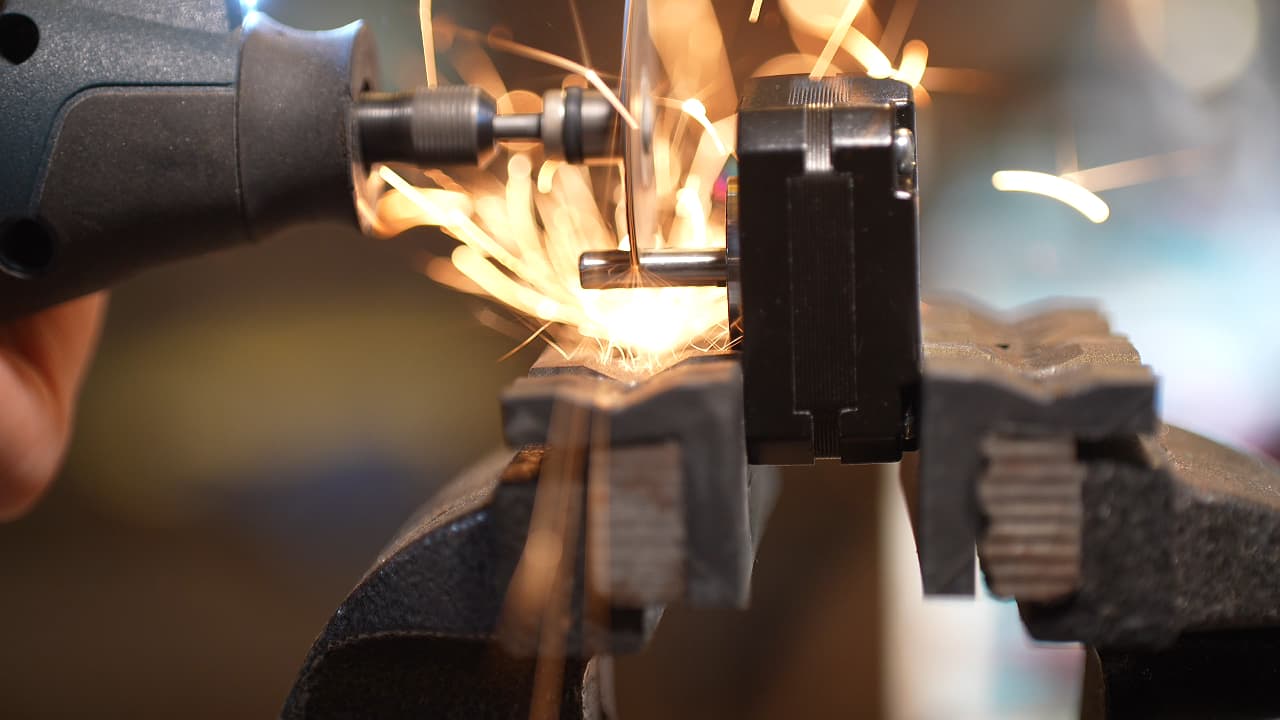

  3. Trim shaft

    Cut the shaft with a dremel and cutoff wheel or hack saw.
Dimension Measurement
Faceplate Width 1.7"
Body Length 20mm
Shaft Diameter 5mm
